ARCHITECTURAL LOUVRES

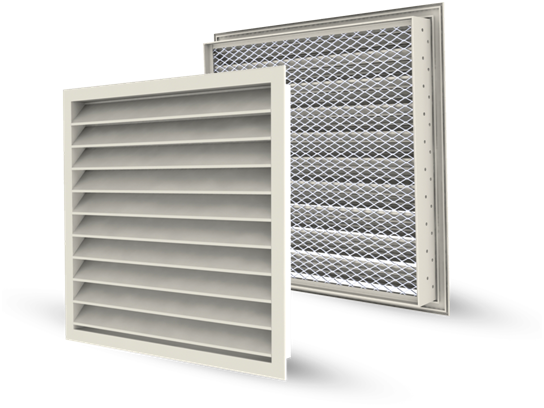

Intake Louvre

Commonly used to protect intake and exhaust openings in building interior or exterior where high free area and low airflow resistance is required.

Design incorporates extruded aluminium one side flanged frame for easy installation and stationary narrow profile horizontal louvre which makes this product ideal for installation into curtain walls, windows, doors or as air conditioning grilles.

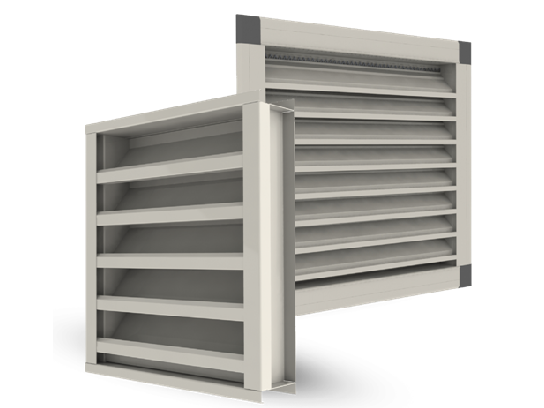

Drainable Louvre

This is a drainable louvre to protect air intake and exhaust openings in building exterior walls where high free area and low airflow resistance is required with increased protection against water penetration.

Design incorporates steel fabricated 4 inch deep drain able head member with both side flange and stationary horizontal blades to channel water to the jambs which guide the water through vertical down-spouts for escape at the sill.

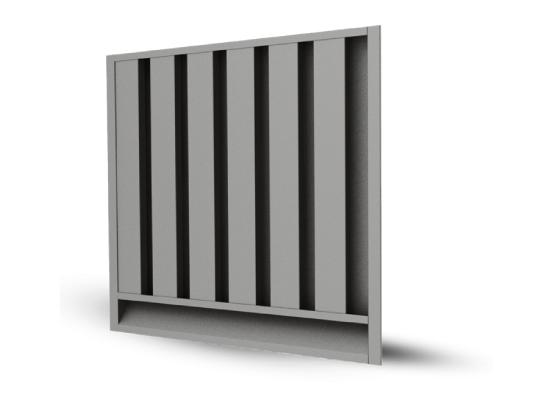

SandTrap Louvre

This is a sand louver designed to protect air intake and exhaust openings in building exterior walls from wind-driven sand. Design incorporates vertical sight-proof blades to separate sand from the air stream which is than channelled out at the sloped sill. This is not intended as a substitute for conventional air filters.

Acoustic Louvre

These louvres are designed to reduce noise. It has high water resistance to water penetration. These are generally used in DG rooms, plant rooms, etc. The design of the blade is to ensure there is no see- through across it.

Sight Proof Louvre

This louver is designed to protect exterior wall penetrations. Design incorporates inverted V style blades, which lend high free area, excellent resistance to water penetration and very low air flow resistance w h i l e p r o v i d i n g m a x i m u m protection against extremely high wind loads and wind-borne debris.

Aluminium/G.I Fabricated Louvre

The standard Al. fabricated louvres used in front doors, closets and ceilings. The use of louvres inside the home is often shading, ventilation or just decoration. At Glenstorms we develop aluminium louvre systems for the facade of any building. Aluminium louvres can be built to aid in sun control or temperature control for buildings. It can be made in GI as well as in SS construction as per client requirements.

Constant Volume Regulator

This is well known as air volume regulators. The air damper opens according to the changes in the referential pressure. Increases the pressure causes the air damper closing movement and at the same time it maintains the required constant air volume. Application of the constant volume regulator eliminates the need to measure and balance the air systems at the time of commissioning. There are the following types according to the referential (work) pressure ranges:
